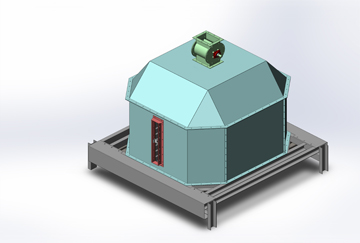

Counter Flow Cooler

Hot pellets coming out from Pellet Mill are required to be cooled near ambient temperature to remove excess moisture and heat to improve the shelf life. Counter flow Coolers are fast replacing the old cross-flow or horizontal coolers as these are compact, maintenance free & highly efficient

Technical Specifications


S.
NO.		 Model

Capacity
(MT/Hours)

 Motor Power (H.P) I.D. Fan's Motor Power Overall Dimensions Approx. Weight in kg.(Without Motor) Volume Seaworthy packing Cu.m.
A B C D E F G H I J K
1
VEW-3
 2-4
1
 5 1250 1680 2600 1350 850 165 725 1370 270 580 155 875 10
2
VEW-6
 5-7
1.5
 10 1663 2235 3005 1687 945 282 764 1370 270 610 200 1000 16
3
VEW-10
 8-11
1.5
 15 2146 2720 3352 1900 952 471 790 1370 270 987 250 1225 25
4 VEW-15 14-16 2 20 2590 3505 3705 1900 1180 588 790 1370 270 1227 317 1450 40
